Cable goods hoist A34(L)

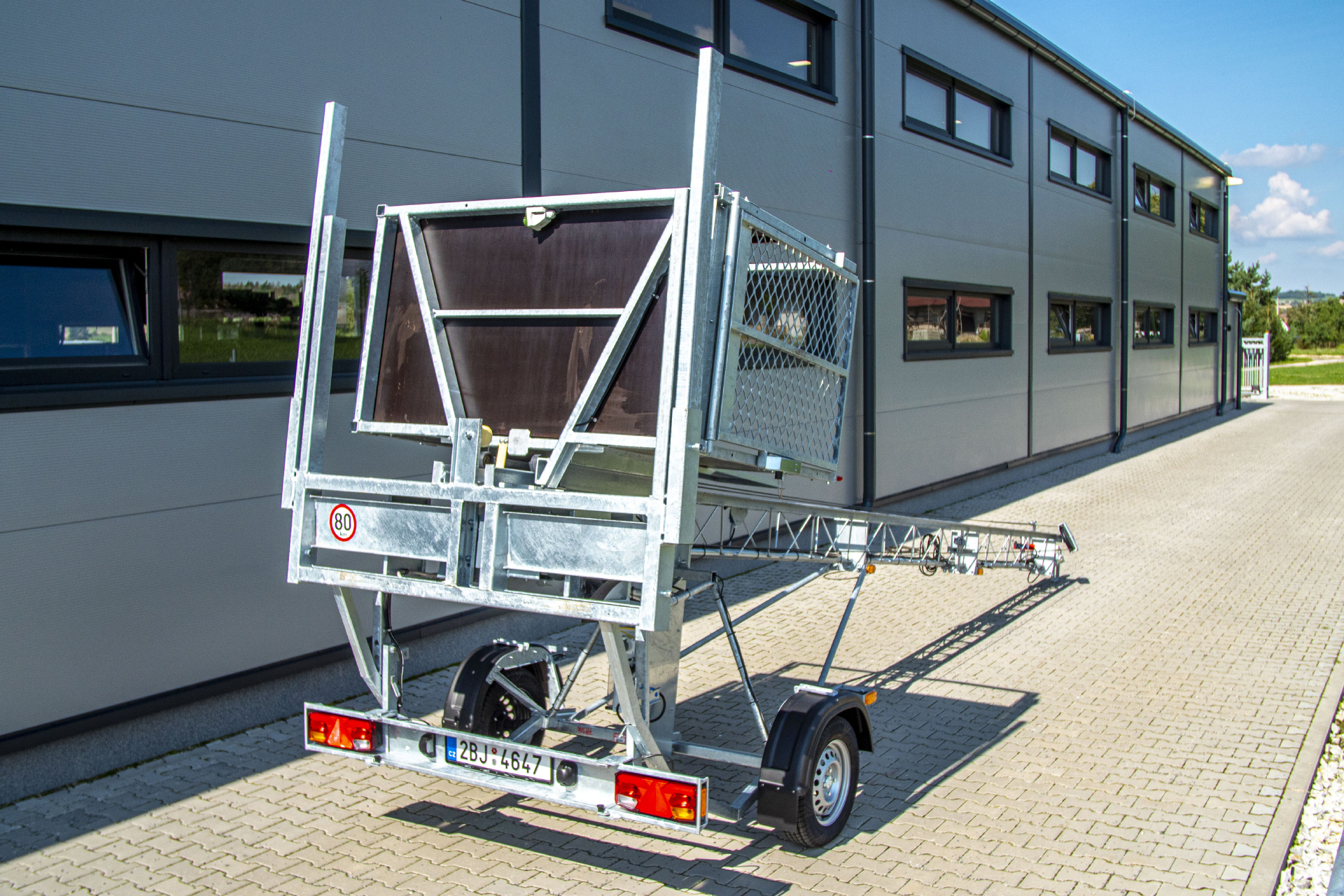

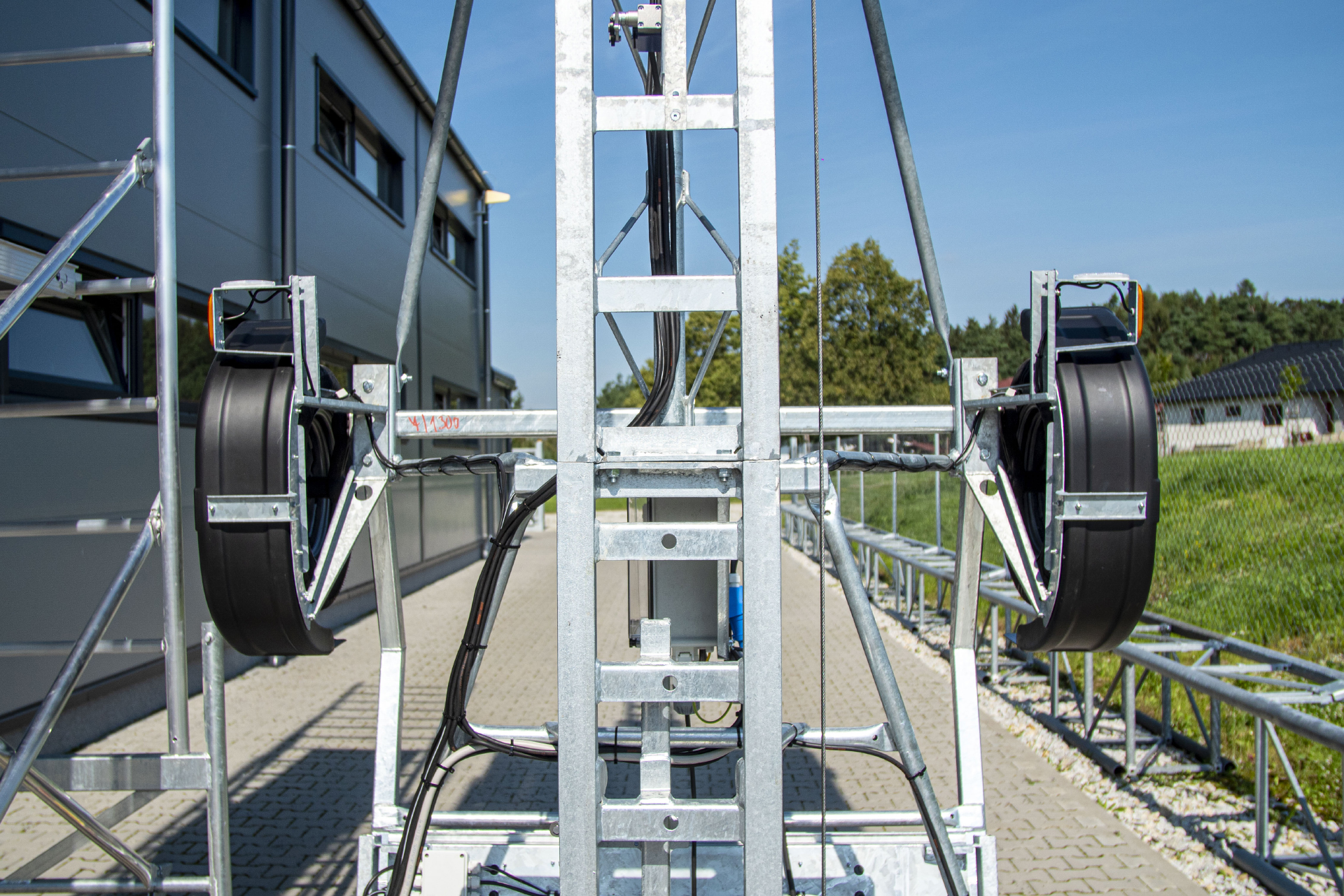

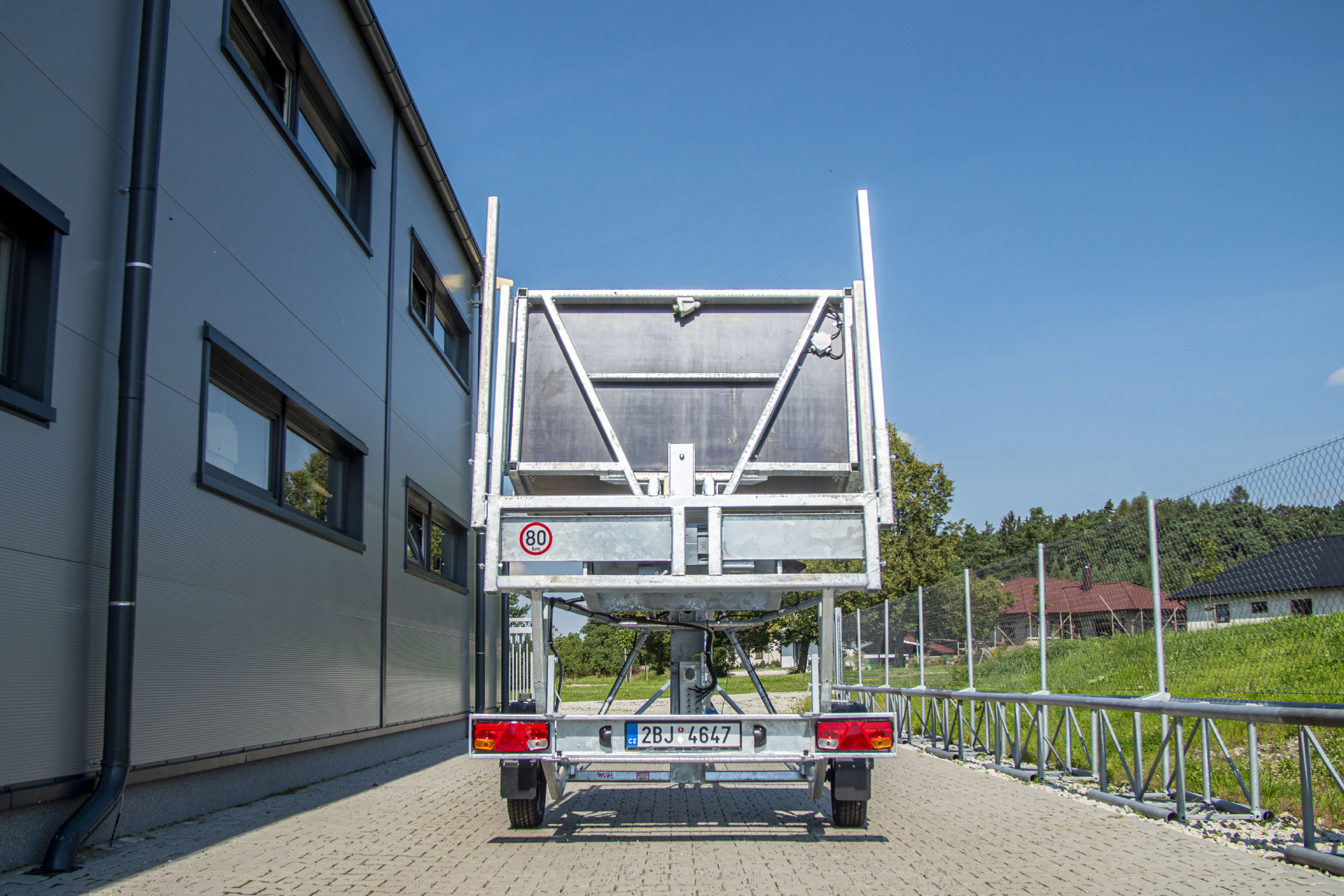

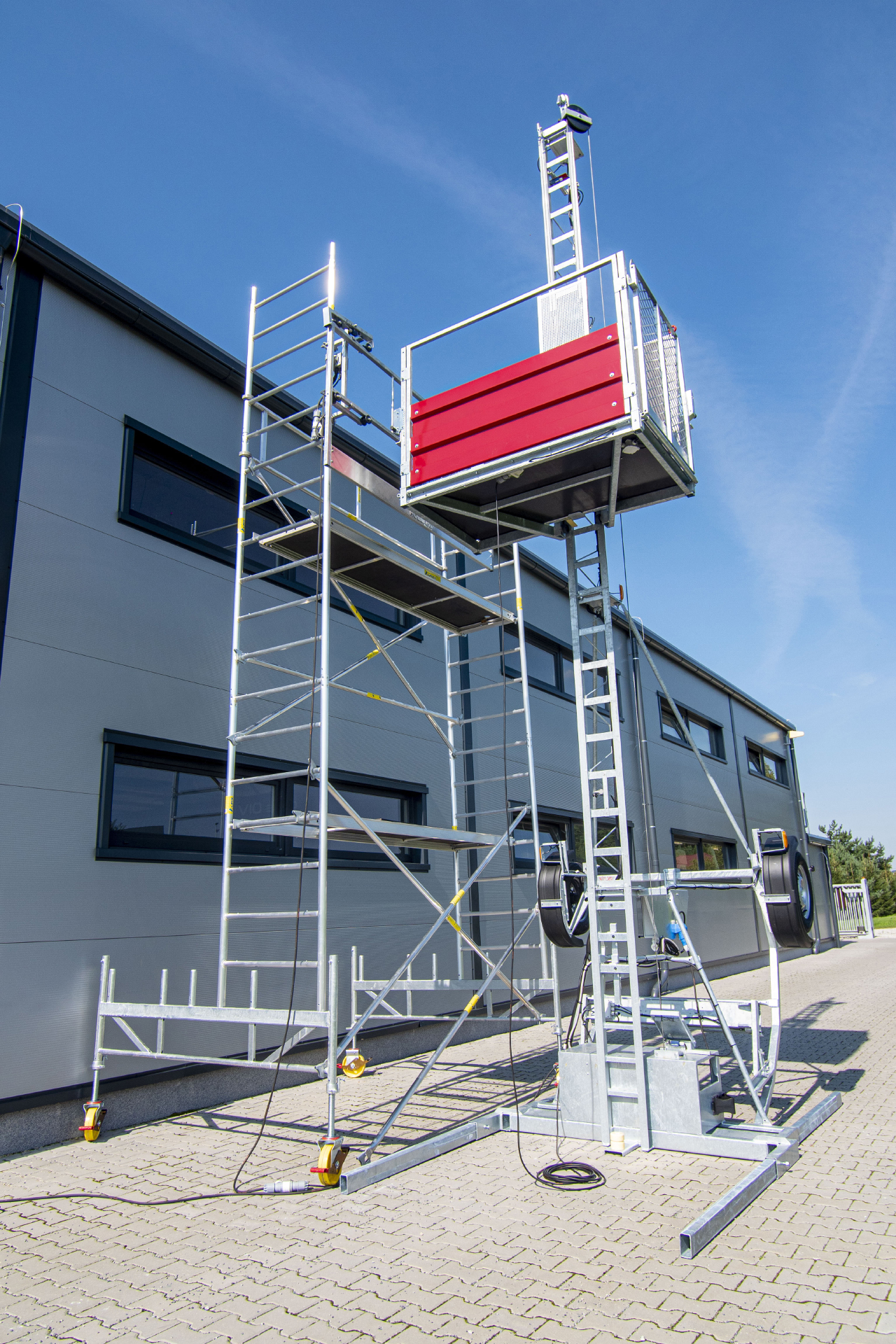

The cable hoist A34(L)is a suitable hoisting appliance for small and medium projects. Its simple assembly, which consists just of tilting it from the transport position into the working position, can be performed by two workers. This type of hoist has its own undercarriage and can be transported on roads by means of a device coupling it to a private car at a speed of 60 km/h.

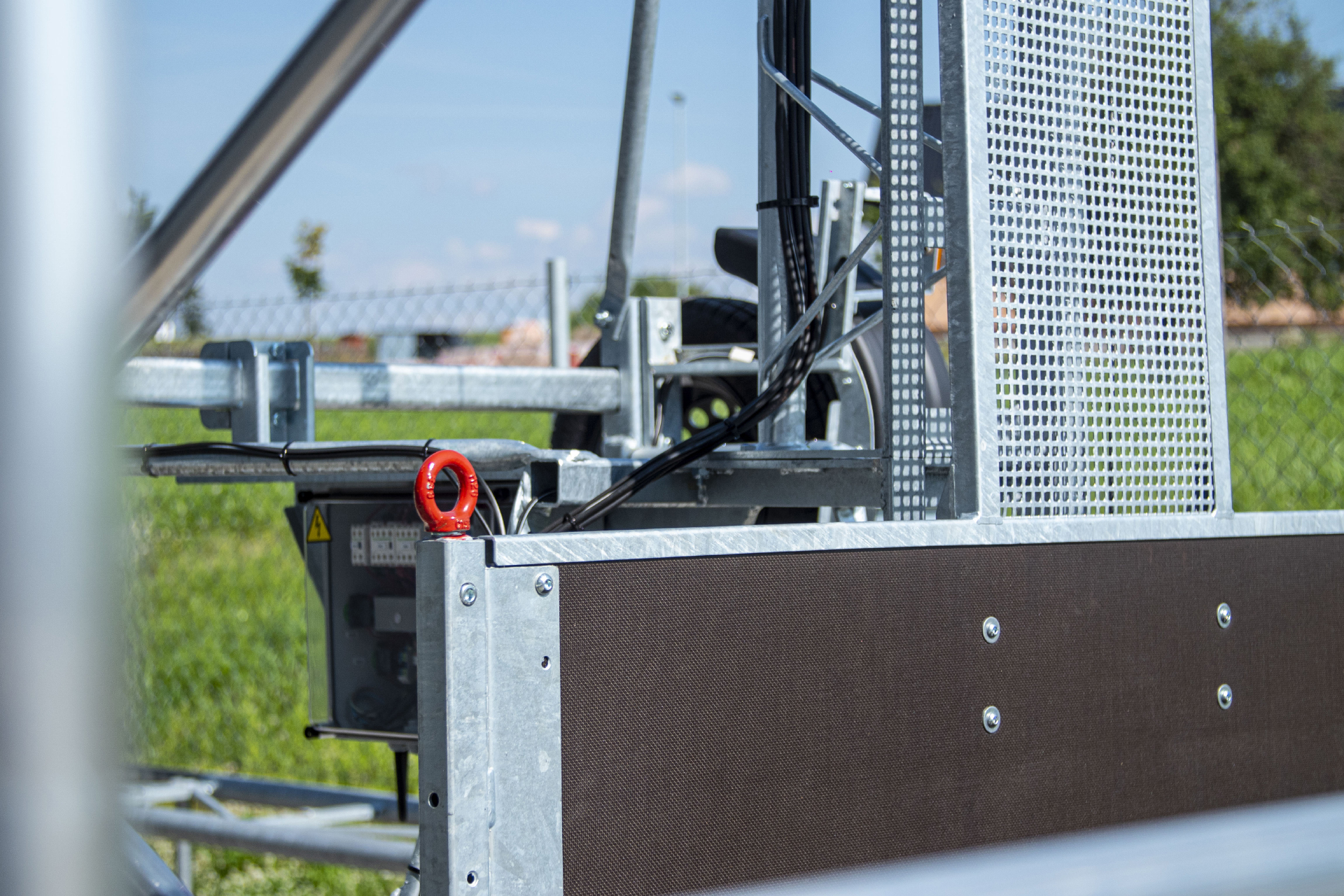

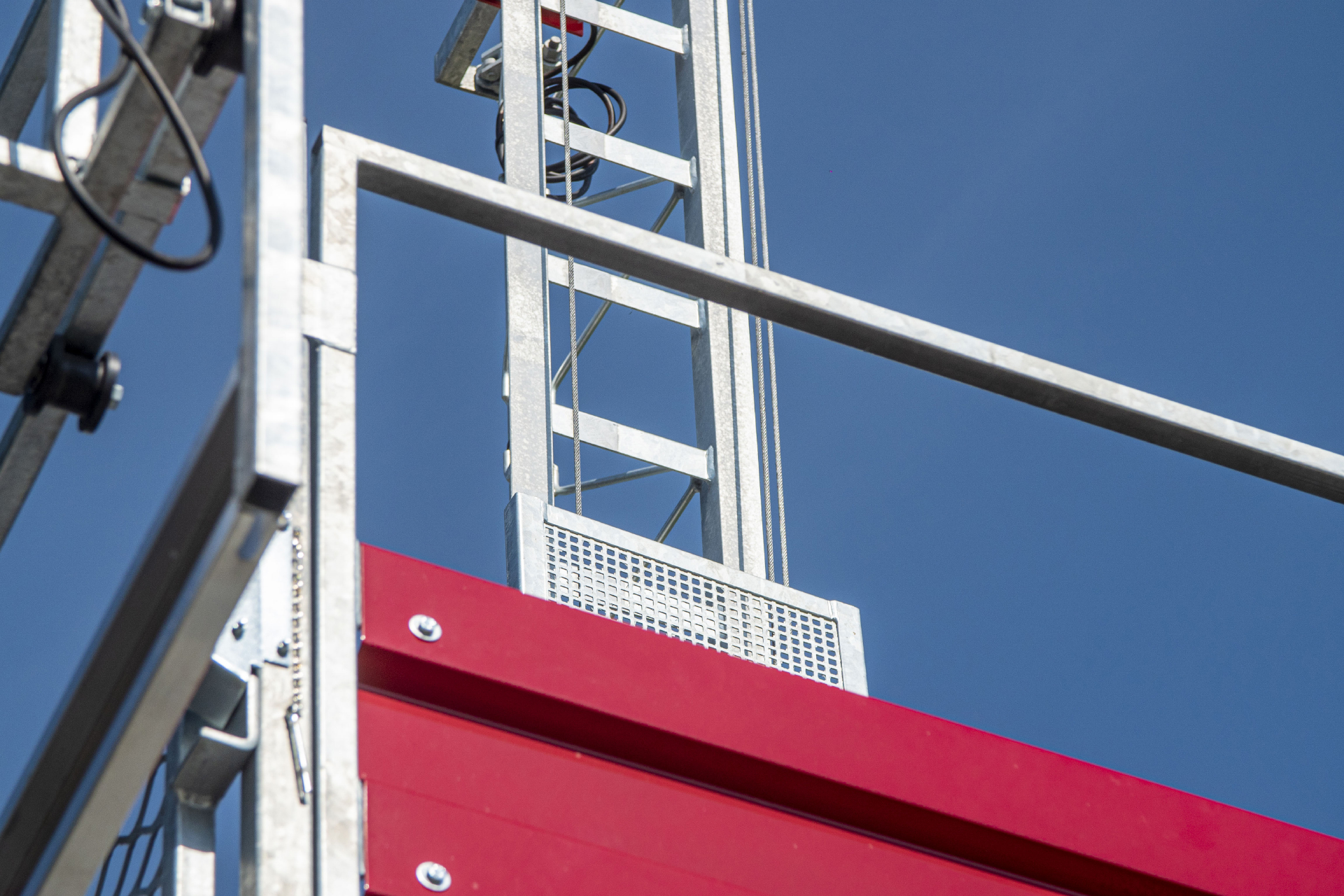

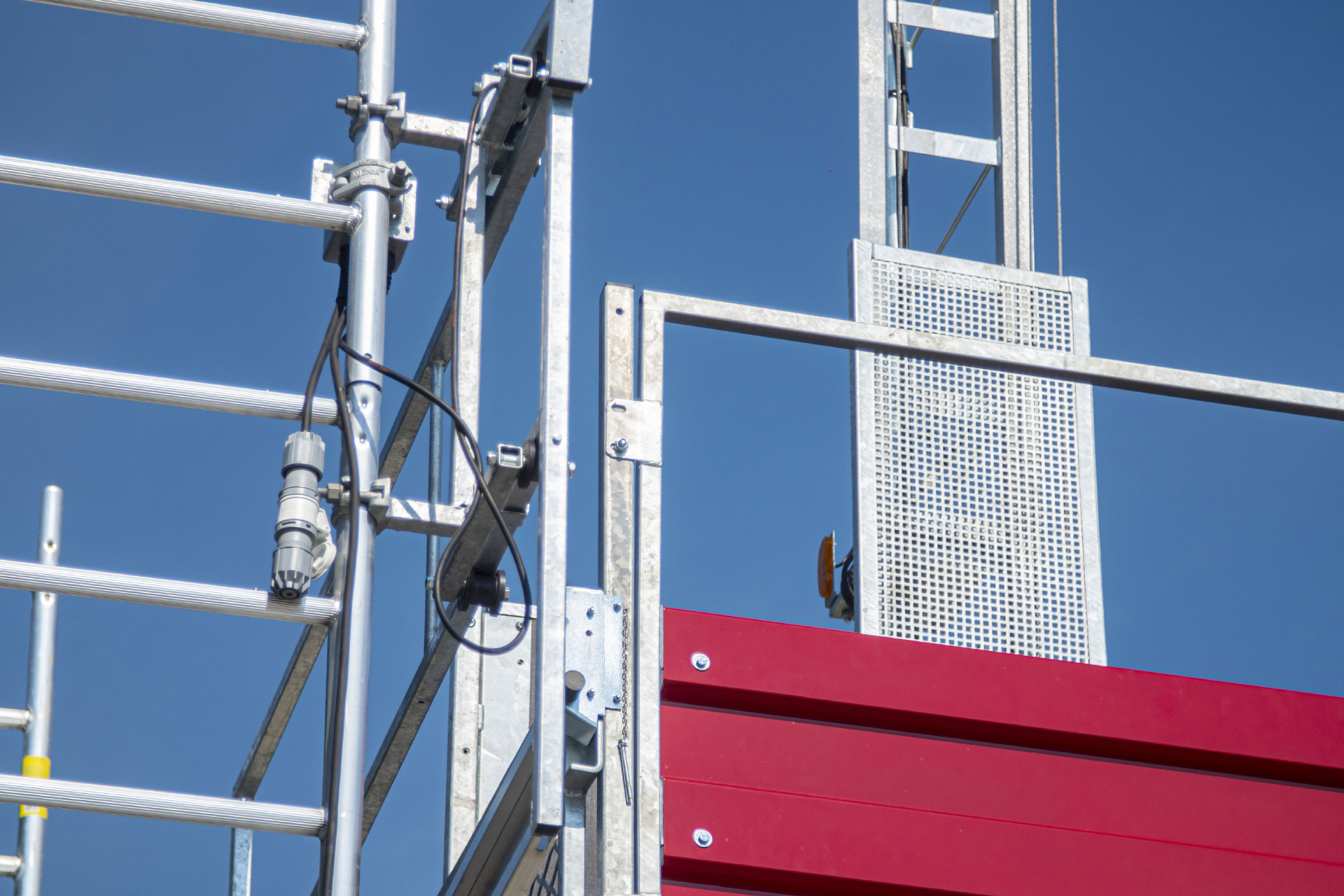

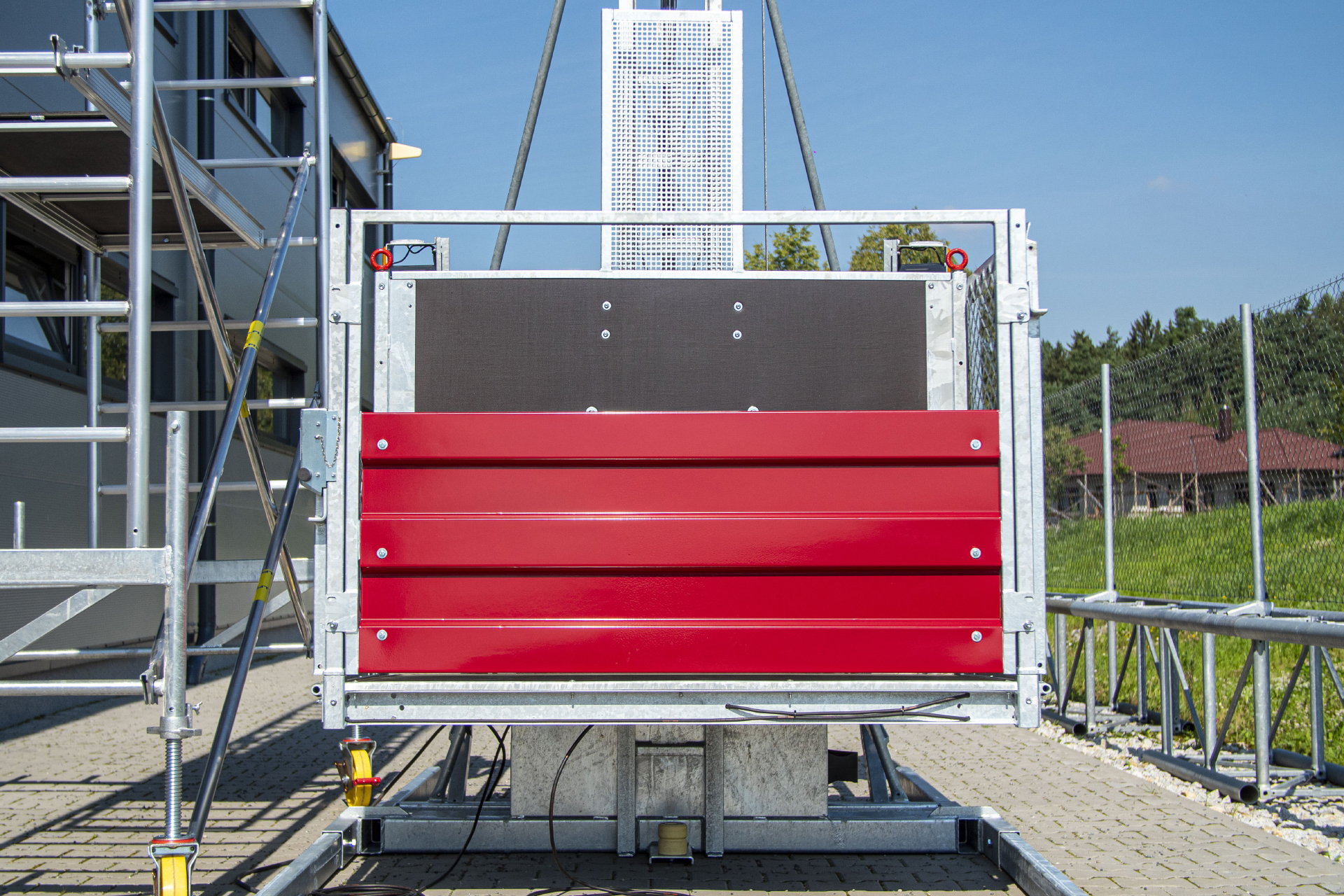

The hoist platform features two solid fences and at the sides it has entry and exit access ramps 1.1 m and 0.6 m long. Both ramps are electromechanically locked and they ensure the safe loading and unloading of material.
Parameters:
Cable lift | A34(L) |
---|---|
Hoist load | 300 kg |
Platform size | 1,65 x 0,9 m |
Hoisting | 16,2 m/min |
Transport of persons | prohibited |
Max. mast height | 15,5 m |
Method of assembly | manual tilting |
Max. height of mast for manual tilting | 7,5 m |
Distance of anchoring points | 6 m |
Height of mast above the last anchoring point | 2 m |

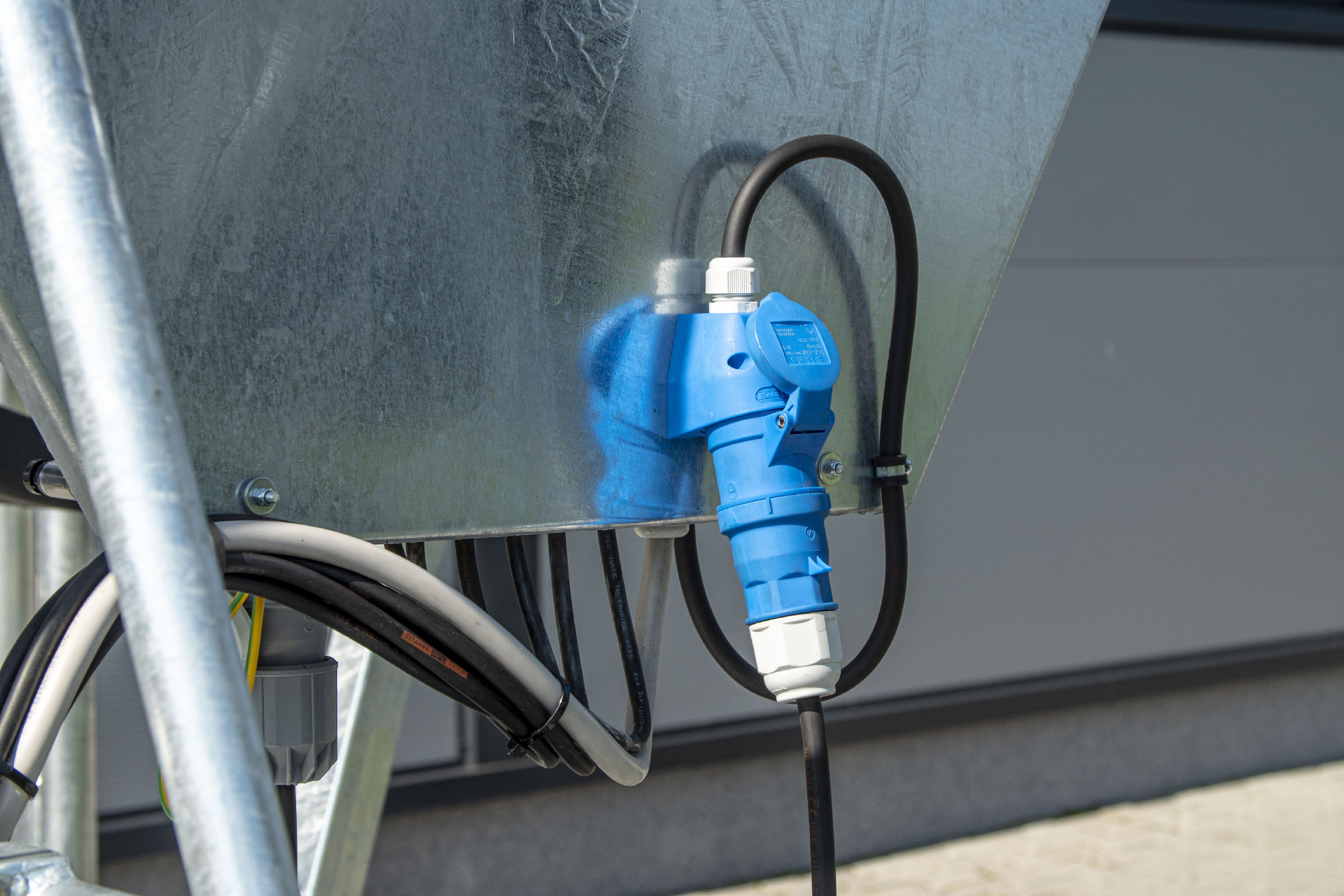

Supply voltage | 400 V (optionally 230 V) |
Protection | 16 A |
Motor power | 1,5 kW |
